18650 Battery Pack Assembly: Complete 2026 OEM Guide

TLDR

18650 battery pack assembly is the process of converting matched cylindrical lithium-ion cells into a protected, tested battery system. It involves cell selection, series/parallel configuration, welded interconnects, BMS protection, insulation, enclosure design, and compliance testing. The quality of every step, from cell matching to weld consistency to thermal management, determines whether the finished pack is safe and reliable. This guide covers the full workflow, key terminology, safety standards, and what buyers should ask manufacturers before placing an order.

What Is 18650 Battery Pack Assembly?

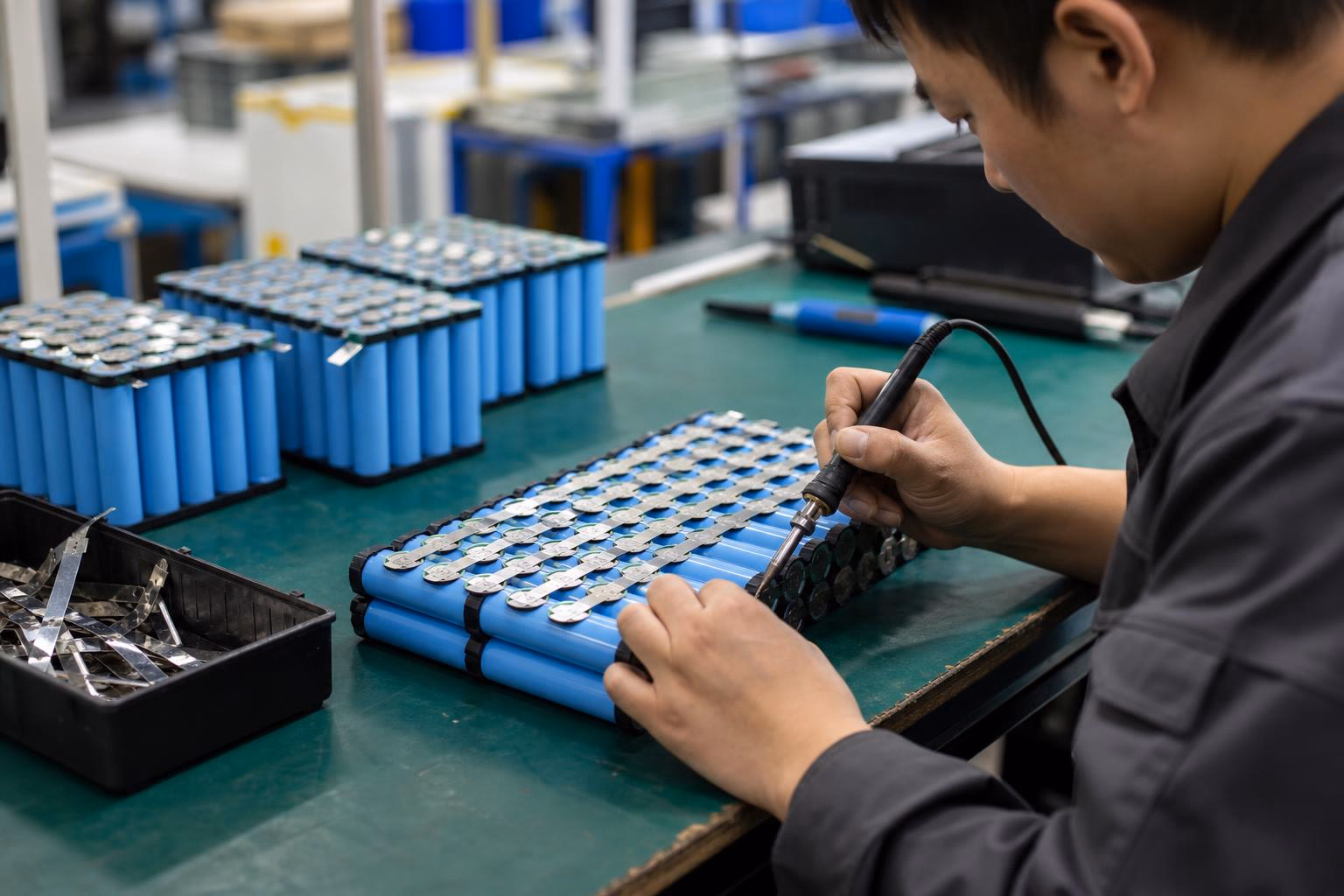

18650 battery pack assembly is the controlled manufacturing process of building a battery pack from multiple 18650 cylindrical lithium-ion cells. It goes well beyond connecting cells together. The finished pack must include electrical connections, protection electronics, insulation, mechanical support, and validated test results.

A single 18650 cell is just a cell. An assembled 18650 battery pack is a complete power module engineered to deliver specific voltage, capacity, current, and safety performance for its intended application. Common applications include laptop batteries, e-bikes, e-scooters, portable electronics, power tools, solar lighting, IoT devices, and backup power systems.

The process typically spans ten stages: requirement review, cell selection, incoming inspection, cell matching, layout design, insulation preparation, interconnect welding, BMS/PCM integration, enclosure and wiring, and final testing with documentation.

Explore Wintonic’s 18650 2200mAh cells

What Is an 18650 Cell?

An 18650 cell is a cylindrical rechargeable lithium-ion cell format. The name describes its approximate dimensions: 18 mm in diameter and 65 mm in length. IEC 61960-3 specifies how cylindrical secondary lithium cells are designated by their dimensions, with the first two digits representing diameter in millimeters and the remaining digits representing length.

The name does not tell you the chemistry, capacity, discharge rating, cycle life, or quality level. Two 18650 cells can look identical on the outside and perform very differently under load.

Consider the range available. Molicel’s INR-18650-P28A is a power-oriented cell with 2.8 Ah capacity and a 35 A maximum discharge current. Samsung’s INR18650-35E is an energy-focused cell with a minimum 3,350 mAh capacity under standard conditions. The P28A handles high-drain power tools. The 35E stores more energy for long-runtime applications. Same size, different jobs.

This distinction matters for pack assembly because cell selection drives every downstream decision: BMS current limits, interconnect sizing, thermal design, and application suitability. Wintonic’s catalog includes 18650 NCM cells in the 2000 to 2200 mAh range at 3.7 V nominal with maximum continuous discharge around 6 A. For applications needing higher discharge rates, Wintonic also offers a 5C 10A 2000mAh 18650 cell designed for power tool and high-drain use cases.

18650 vs. 21700 and Other Formats

The 18650 format remains widely used, but newer cylindrical formats like the 21700 (21 mm x 70 mm) offer more energy per cell. The choice depends on the application’s space constraints, energy density needs, and existing tooling. Many e-bike and power tool designs still specify 18650 cells because of their mature supply chain, proven safety record, and lower per-cell cost. For applications where higher per-cell capacity matters, a 21700 lithium-ion cell may be a better fit.

How Series and Parallel Configuration Works

Pack notation confuses a lot of people, but the logic is straightforward.

Series (S) means connecting cell groups end to end. Each series step increases voltage by the nominal voltage of one cell.

Parallel (P) means connecting cells side by side within a group. Each parallel cell adds its capacity and shares the current load.

13S10P means 13 groups in series, with 10 cells wired in parallel per group. That is 130 total cells.

Here is a worked example using 3.7 V, 2.2 Ah cells:

• Nominal voltage: 13 x 3.7 V = 48.1 V
• Capacity: 10 x 2.2 Ah = 22 Ah
• Nominal energy: 48.1 V x 22 Ah = roughly 1,058 Wh before real-world derating
• If each cell handles 6 A continuous, the parallel group theoretically allows 60 A, but actual pack current is limited by the BMS settings, interconnect resistance, wiring, connector ratings, enclosure cooling, and duty cycle

A common mistake is assuming that pack current capacity equals the cell rating multiplied by the parallel count. It does not work that cleanly in practice. Practitioners on Reddit report diagnosing hot spots by measuring millivolt drops at nickel-strip joints under load. A higher mV drop at one connection point means higher resistance, which builds heat and can trigger BMS shutdown.

See a real 13S10P e-bike pack

Why Cell Matching Matters

Cell matching is the process of grouping cells by similar performance characteristics before assembly. It is not optional for packs that need to perform reliably.

The key matching variables are capacity, open-circuit voltage, internal resistance, self-discharge rate, and temperature behavior. When cells within a parallel group or across series groups are poorly matched, the weakest cell limits the entire pack. It charges first, discharges first, heats first, and ages fastest.

NASA’s battery safety guidance is direct on this point: for custom batteries with catastrophic failure modes, cell performance matching before assembly is required to reduce state-of-charge imbalance risks. A study on retired 18650 cell grouping reinforces this by showing that capacity-only screening may be insufficient for medium and high-rate applications, where internal resistance dispersion also drives significant performance gaps.

Reddit communities focused on 18650 builds consistently emphasize matching. One recurring theme: used or salvaged cells require much stricter screening than new, same-lot cells because aging is rarely uniform. Practitioners recommend grouping cells within tight voltage and internal resistance windows, though the exact tolerances depend on the cell model, application current, and manufacturer specifications.

Manufacturers set their own matching criteria based on application severity, cell model, and certification requirements. There is no single universal tolerance that applies everywhere.

Spot Welding, Interconnects, and Why Soldering Is Avoided

The standard method for connecting 18650 cells in a pack is resistance spot welding. A short, high-current pulse bonds a nickel strip (or other qualified interconnect material) to the cell terminal. The goal is a low-resistance electrical joint that does not push excessive heat into the cell body.

Samsung’s 18650 cell documentation explicitly states that cells should not be soldered directly because heat from soldering can damage internal components like the separator and insulator. Instead, cells should be welded with leads on their terminals and then soldered to wires or leads away from the cell. Panasonic’s lithium-ion handbook carries the same warning.

The purpose of spot welding in 18650 battery pack assembly is not only to make an electrical connection. It is to make a repeatable, low-resistance joint while limiting heat damage to the cell. Weld quality has direct consequences: a weak or high-resistance weld creates a hot spot under load, increases voltage sag, and can eventually cause the connection to fail. One troubleshooting thread on Reddit describes a user finding one nickel-strip joint with noticeably higher millivolt drop, which was causing localized heating and BMS shutdowns.

On the production side, professional 18650 pack assembly uses automated or semi-automated spot welders with programmable current, weld time, and positioning. A LinkedIn practitioner post describes production machines with current-gradient control, fault detection, barcode scanning, and MES data upload. The difference between professional assembly and DIY assembly is not just owning a spot welder. It is repeatability and traceability across hundreds or thousands of packs.

Experienced builders on the Endless Sphere forum open their welding guides with a warning that even a single 18650 cell can start a fire and that building packs is dangerous work for people without electrical and electronics expertise.

What the BMS or PCM Does

A BMS (Battery Management System) or PCM (Protection Circuit Module) is the protection and management circuit that monitors the pack and enforces safe operating limits. It is part of the pack’s safety architecture, not an optional add-on.

Core BMS functions include:

• Overcharge protection prevents cells from exceeding safe voltage
• Over-discharge protection cuts off output before cells are damaged
• Overcurrent protection limits current draw to safe levels
• Short-circuit protection disconnects the pack instantly
• Temperature sensing uses thermistors to detect overheating
• Cell balancing equalizes charge across series groups to reduce imbalance
• Communication (in smarter packs) via SMBus, CAN, UART, or I2C

Texas Instruments’ BQ76952 battery monitor IC, for example, integrates overcurrent, overtemperature, overvoltage, short-circuit detection, temperature sensing, undervoltage, and balancing for 3 to 16 series cells. Analog Devices notes that accurate cell balancing is a significant BMS feature because it enables safe operation at high usable capacity.

A BMS is not a charger. The BMS protects and monitors the pack. The charger supplies the charging profile. Both must match the pack’s chemistry, cell count, and voltage limits. Using the wrong charger with a properly protected pack can still create problems if the charger voltage exceeds the BMS cutoff threshold before it reacts.

Reddit threads show recurring confusion around whether cheap BMS boards include balancing or only basic protection. Some boards labeled as “BMS" are actually PCMs with protection-only functions and no active balancing. Buyers should verify whether a board provides passive balancing, active balancing, or protection-only functionality before specifying it for a multi-series pack.

Mechanical Design, Insulation, and Thermal Safety

A battery pack fails mechanically before it fails electrically more often than beginners expect. Vibration cracks interconnects. Rubbed insulation exposes conductive surfaces. Unsupported BMS boards flex and break solder joints. Loose output leads create intermittent connections.

Cell wrappers on 18650 cells are thin PVC sleeves. If the sleeve is damaged, the exposed metal can of the cell (which is the negative terminal) can short against nickel strips, wiring, or the enclosure. Samsung’s 18650 specification recommends cell spacing of more than 1 mm, appropriate shock absorbers, and warns that damaged sleeves can cause short circuits with wiring inside the battery.

Proper 18650 pack assembly includes:

• Insulating rings (fish paper) on positive terminals to prevent shorts
• Cell holders to maintain spacing and alignment
• Kapton tape or heat shrink between series groups
• Strain relief on output wires and connectors
• Thermistor placement where actual heating occurs, not where it is convenient
• Enclosure design that resists vibration, impact, and moisture

Practitioners on Reddit warn that nickel strips should not serve as the mechanical structure holding cells together. Vibration can work-harden and crack nickel over time. The electrical interconnect should carry current. Cell holders, adhesive, and the enclosure should provide the structural support.

Another common assembly hazard: accidentally shorting already-welded cells while spot welding adjacent connections. Experienced builders recommend covering nearby welded cells with insulating material during the welding process. One Reddit user also warns to insulate nickel strips carefully because the cell can under the wrapper is negative, and rubbed-through insulation creates a short circuit path.

For applications like e-bikes, where packs endure constant road vibration, enclosure design is critical. A 36V down-tube e-bike battery needs different mechanical protection than a stationary backup battery on a shelf.

NASA’s battery safety guidance advises designers to assume thermal runaway can happen and to design so that a single-cell failure does not cascade into a catastrophic event. Adding separation between cells reduces propagation risk but increases pack size, a tradeoff every pack designer must evaluate based on the application.

Testing and Quality Control After Assembly

An assembled 18650 battery pack is not finished until it passes testing. The word “assembled" should mean tested, documented, and traceable, not just physically built.

A thorough post-assembly testing sequence includes:

1. Visual inspection for damage, contamination, or misalignment
2. Polarity verification
3. Pack voltage and individual group voltage measurement
4. Internal resistance or impedance screening
5. Weld strength check (pull test)
6. Continuity and insulation resistance checks
7. BMS function verification (protection thresholds, balancing, communication)
8. Charge/discharge cycle test
9. Load test at rated current
10. Temperature rise monitoring during load
11. Aging or burn-in period where applicable
12. Final labeling, traceability records, and shipping documentation

For packs intended for transport, manufacturers must ensure UN38.3 testing is completed and test summary documents are available on request, as required by PHMSA for lithium cells and batteries offered for transportation.

A LinkedIn practitioner describes using a 7 kg tensile test after spot welding as one production-style weld validation check. This is not a universal legal requirement, but it shows the kind of process control that separates production-grade assembly from hobbyist builds.

Testing requirements vary by application, destination market, pack size, chemistry, and transport mode. Not every small pack needs every certification. But every pack needs enough testing to confirm it works as specified and will not create a safety incident.

Standards and Certifications

One of the biggest gaps in most supplier content is explaining what each standard actually covers. Buyers frequently confuse transport testing with product safety certification.

UN38.3 is a transport requirement, not a product safety certification. Passing UN38.3 means the cells survived a set of tests (altitude, thermal cycling, vibration, shock, external short circuit, impact, overcharge, forced discharge) designed to ensure safe transport. It says nothing about whether the assembled pack is safe for its intended application.

For e-bike and e-scooter packs specifically, the safety stakes are high. CPSC’s 2026 micromobility report documents 19 e-bike fatalities from 13 battery fire incidents between 2017 and 2024, plus 15 e-scooter fatalities from 11 battery fire incidents in the same period. These numbers do not mean all 18650 packs are dangerous. They show why cell quality, assembly method, BMS design, charger compatibility, enclosure integrity, and proper documentation matter.

When to Choose Professional Assembly

Some projects belong in a professional pack manufacturer’s hands, not on a workbench. This is a safety call, not gatekeeping.

Professional 18650 battery pack assembly makes more sense when:

• The pack has multiple series groups (4S and above carries meaningful risk)
• Continuous current exceeds 10 to 15 A
• The pack will be sold commercially or imported across borders
• The application is e-bike, e-scooter, medical, or industrial
• Cells are unknown brand, salvaged, or of uncertain history
• The buyer needs UN38.3 test summaries, IEC/UL documentation, or SDS
• Volume production requires consistency across hundreds or thousands of units

The Endless Sphere forum’s well-known spot welding guide opens with the statement that even one 18650 cell can start a fire and that building a battery is dangerous work. That warning comes from experienced builders who have done it successfully many times.

Browse OEM 24V 18650 e-scooter packs

For smaller e-bike configurations, Wintonic also offers a 24V 10Ah electric bike battery as a ready-made alternative to custom builds.

The Four Sign-Offs of a Good 18650 Pack

Most content reduces 18650 battery pack assembly to “cell selection plus welding plus BMS." That framing misses half the picture. A complete pack needs four sign-offs before it is ready for use.

1. Electrical sign-off. Voltage, capacity, Wh, discharge current, peak current, voltage sag under load, BMS limits, and charger compatibility are all verified.

2. Mechanical sign-off. Cell holders, compression resistance, shock and vibration tolerance, enclosure fit, strain relief, connector locking, and abrasion control are confirmed.

3. Thermal sign-off. Heat path, cell spacing, thermistor placement, load profile, ambient temperature range, and absence of hot spots at welds or busbars are checked.

4. Compliance and logistics sign-off. UN38.3 test summary, labeling, SDS/MSDS, IEC or UL requirements by market and application, and shipping mode documentation are complete.

This framework gives buyers a practical way to evaluate whether a pack manufacturer is doing thorough work or just connecting cells and shipping boxes.

What to Send a Battery Pack Manufacturer

The best way to start a conversation with a pack manufacturer is to define the requirements, not ask for a price. Price follows design. Here is the information that drives 18650 pack assembly decisions:

• Application (e-bike, power tool, lighting, laptop, IoT, UPS, solar, etc.)
• Nominal voltage and full-charge voltage target
• Capacity in Ah or Wh
• Continuous current and peak current
• Duty cycle or load profile
• Physical size limits and enclosure requirements
• Connector type, cable length, terminal style, fuse needs
• Charger specification or charging port requirement
• Communication protocol if needed (SMBus, CAN, UART, I2C, RS485)
• Operating and storage temperature range
• IP rating, vibration, or shock requirements
• Target certifications (UN38.3, IEC 62133, UL 2054, UL 2271, RoHS, etc.)
• Branding, labeling, and packaging needs
• Estimated annual volume and initial sample quantity

Wintonic supports OEM/ODM services spanning cells, BMS/PCM assemblies, PCBA/SMT, and finished pack assembly for e-bike, laptop, lighting, 3C, backup power, and storage applications. Custom label and packaging support is available.

Contact Wintonic for OEM/ODM pack evaluation

Glossary of Key Terms

FAQ

What is 18650 battery pack assembly?

18650 battery pack assembly is the process of building a battery pack from multiple 18650 cylindrical lithium-ion cells. The process includes cell selection, cell matching, series/parallel configuration, interconnect welding, BMS/PCM integration, insulation, enclosure design, and final testing to meet specific voltage, capacity, current, and safety requirements.

What does 13S10P mean?

13S10P means the pack has 13 series groups, with 10 cells connected in parallel in each group, for a total of 130 cells. The series count determines voltage (13 x 3.7 V = 48.1 V nominal), while the parallel count determines capacity and current sharing.

Why are 18650 cells spot welded instead of soldered?

Spot welding creates a short, localized bond between the interconnect strip and cell terminal without driving excessive heat into the cell body. Samsung’s 18650 documentation warns against direct soldering because prolonged heat can damage internal components like the separator and insulator. Welding produces a repeatable, low-resistance joint with less thermal risk.

Does every 18650 battery pack need a BMS?

For multi-cell commercial packs, a BMS or PCM is part of the safety architecture. It protects against overcharge, over-discharge, overcurrent, short circuits, and overheating while providing cell balancing. Skipping the BMS on a multi-series pack is unsafe and commercially unacceptable.

Is UN38.3 a safety certification?

No. UN38.3 is a transport testing requirement. Lithium cells and batteries offered for transportation must pass the tests specified in UN Manual of Tests and Criteria Section 38.3, and manufacturers must make test summaries available on request. Passing UN38.3 does not certify that the pack is safe for its end-use application.

Can 18650 packs be customized?

Yes. Custom 18650 battery pack assembly allows manufacturers to configure voltage, capacity, current, dimensions, BMS features, connectors, enclosures, and communication protocols to match specific application requirements. OEM/ODM services typically include branding, labeling, and packaging customization.

What information should I provide when requesting a custom 18650 pack?

Provide the application type, target voltage and capacity, continuous and peak current needs, physical size constraints, connector requirements, operating temperature range, certification targets, communication protocol needs, and estimated order volume. The more detail you share upfront, the faster and more accurate the design process.

Are 18650 packs still relevant now that 21700 cells exist?

Yes. The 18650 format has a mature supply chain, proven field history, lower per-cell cost, and a smaller physical profile. Many e-bike, laptop, power tool, and lighting applications continue to specify 18650 cells. The 21700 format offers higher energy per cell but requires different tooling and pack geometries. The right choice depends on the application’s space, energy, and cost requirements.
